Chassis
Rahmen: Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
Gabel: Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
Steuersatz: FSA 1-1/2" Integrated Aluminium Cup
Antrieb
Kurbelgarnitur: Shimano 105 R7100 34x50t
Umwerfer: Shimano 105 R7100
Schaltwerk: Shimano 105 R7100
Kette: Shimano M6100
Kassette: Shimano 105 R7100 11-34t 12-Speed
Innenlager:
Laufradsatz: Alloy, Tubeless, 700c, 19c, 28H
Reifen: Vittoria Zafiro V Rigid bead 700x28c
Cockpit
Lenker: OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Vorbau: OC Road Performance RP22, 5°
Sattel: SP 0.2 Carbon, 27.2mm, Setback 20
Schalt-/Bremshebel: Shimano R7120
Sattelstütze: Fizik Aliante R5
Andere Orbea Fahrräder
Orca Aero m21eLTD
| Rahmen | Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible. |
|---|---|
| Gewicht | ( max.) |
| Größe(n) | |
| Schaltwerk | Sram Force AXS 12s |
Terra H40 artichoke matt
| Rahmen | Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system |
|---|---|
| Gewicht | ( max.) |
| Größe(n) | |
| Schaltwerk | Shimano RD-RX400 |
Terra H40 blue stone copper
| Rahmen | Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system |
|---|---|
| Gewicht | ( max.) |
| Größe(n) | |
| Schaltwerk | Shimano RD-RX400 |
Terra H40 infnity green ivory white
| Rahmen | Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system |
|---|---|
| Gewicht | ( max.) |
| Größe(n) | |
| Schaltwerk | Shimano RD-RX400 |
Terra m20i Team CUSTOM
| Rahmen | Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box |
|---|---|
| Gewicht | ( max.) |
| Größe(n) | |
| Schaltwerk | Shimano GRX RX820 |

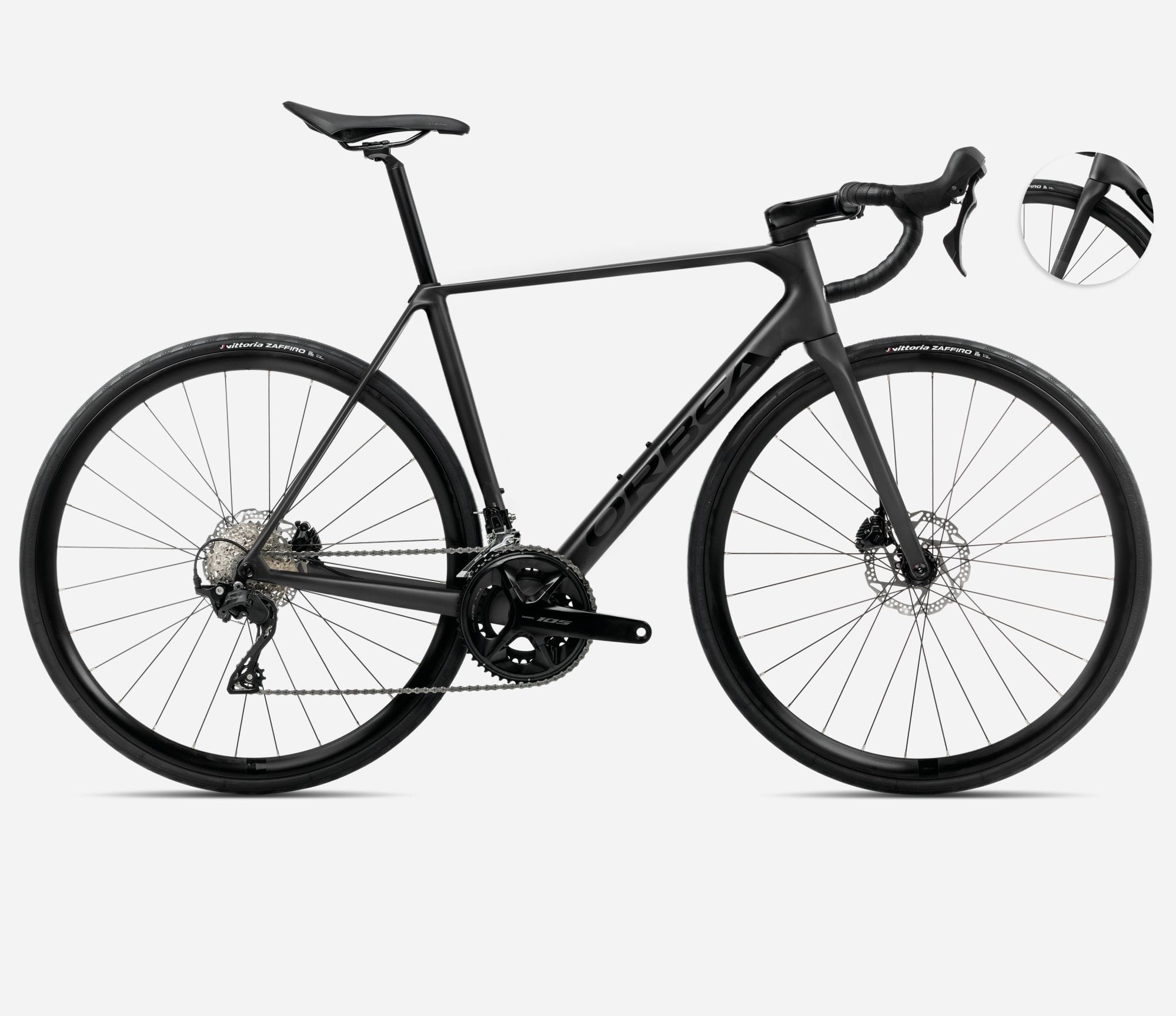

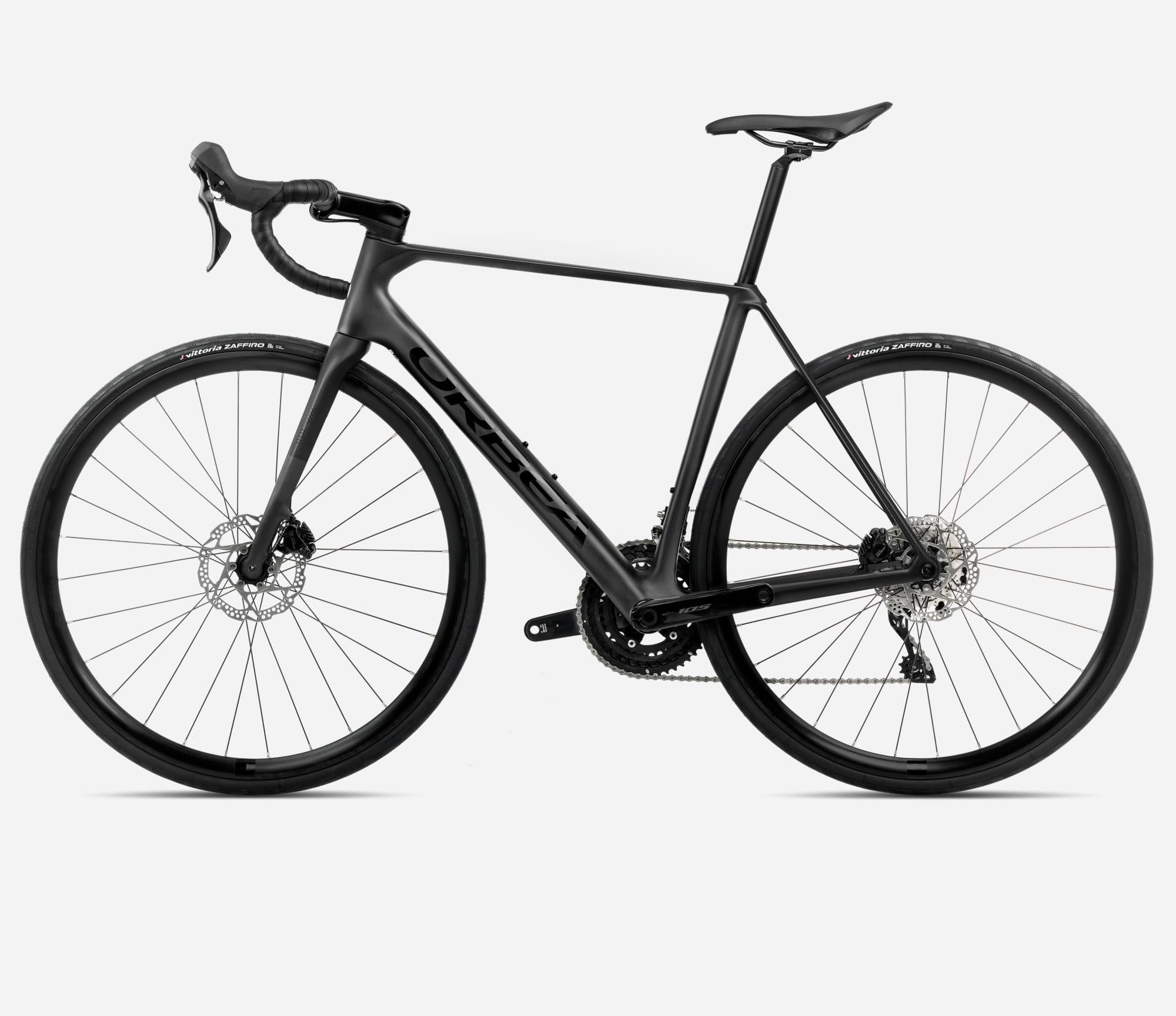

Orca m30
| Rahmen | Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. |
|---|---|
| Gewicht | ( max.) |
| Größe(n) | |
| Schaltwerk | Shimano 105 R7100 |
Orca m30i
| Rahmen | Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. |
|---|---|
| Gewicht | ( max.) |
| Größe(n) | |
| Schaltwerk | Shimano 105 Di2 R7150 |
Orca M35i
| Rahmen | Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. |
|---|---|
| Gewicht | ca. 6,7kg ( max.) |
| Größe(n) | 47, 49, 5 51, 55, 57, 60 |
| Schaltwerk | Shimano 105 Di2 R7150 |
